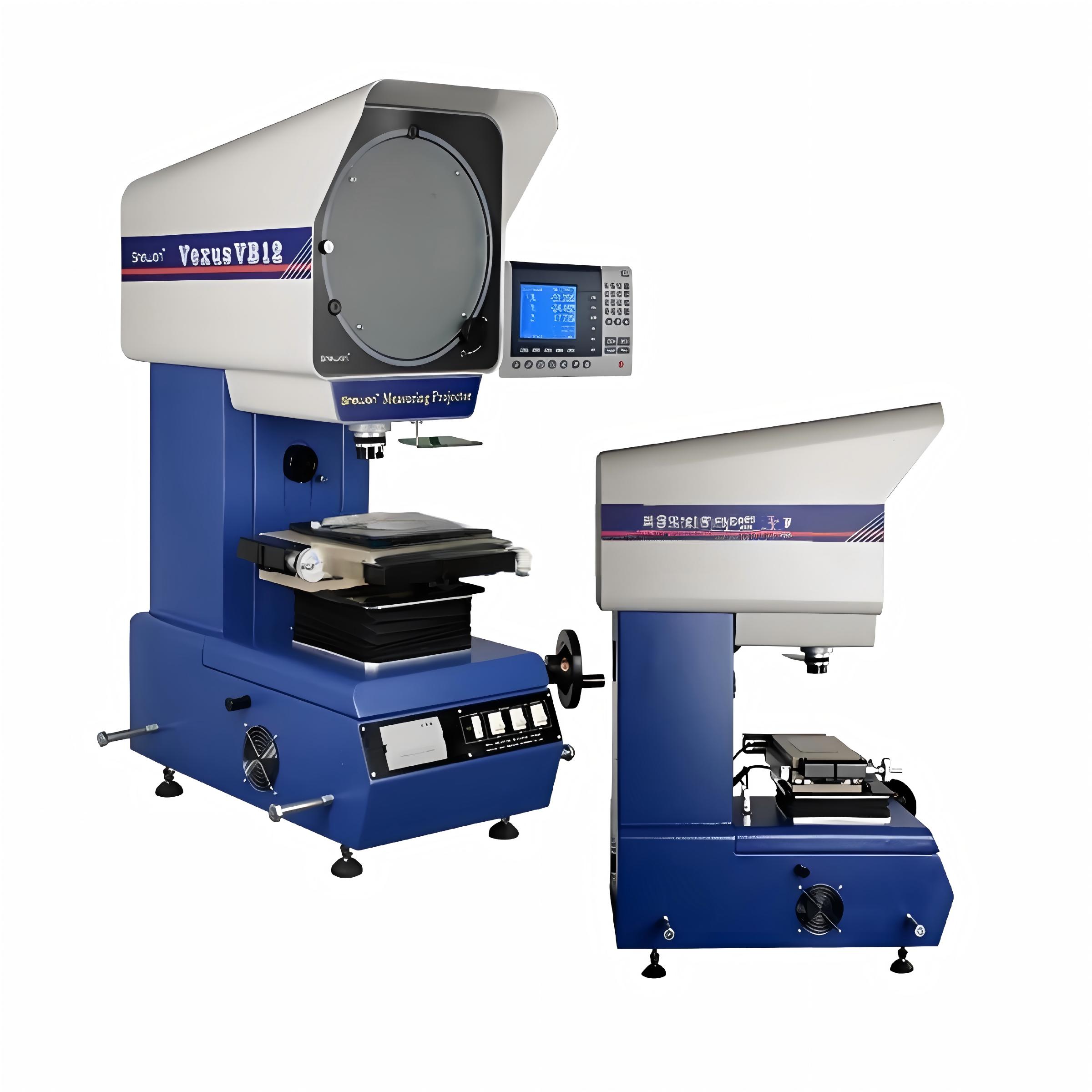

China Profile Projector Machine: Key Features and Selection Tips for Accurate Inspection

When precision inspection defines your production quality, choosing the right profile projector becomes more than a purchase—it’s a strategic decision. But with so many options emerging from China’s booming optical measurement market, how do you separate truly reliable machines from overhyped specs? Enter JATEN: a brand that has quietly built a reputation for accuracy without compromise. In this guide, we cut through the noise to explore key features and practical selection tips for China profile projector machines—so you can inspect with confidence, not guesswork.

Understanding the Role of Profile Projectors in Precision Metrology

Profile projectors, often called optical comparators, sit at the intersection of traditional measurement and modern precision needs. Their role goes far beyond simply magnifying a part silhouette on a screen. In a metrology lab, these instruments turn complex dimensional verification into a direct visual comparison, letting an operator catch deviations that contact probes might miss or even distort. The projected profile becomes a stable reference against which actual geometry is checked—whether it's a thread form, a stamped feature, or a delicate edge that cannot tolerate even the lightest touch.

What makes profile projectors indispensable in precision metrology is their ability to handle parts that defy conventional coordinate measuring machines. Transparent, flexible, or micro-featured components often resist tactile measurement, yet a projector accepts them without altering their shape. By overlaying calibrated reticles or CAD-generated overlays, inspectors can assess form, angle, and radius in seconds. This combination of non-contact measurement, immediate visual feedback, and tolerance comparison keeps profile projectors relevant even as digital systems advance—they remain a trusted bridge between the drawing and the finished part.

Core Optical and Mechanical Features That Drive Measurement Accuracy

Measurement accuracy is never the result of a single component; it emerges from how optical and mechanical elements interact under real operating conditions. The readhead's optical path must preserve fringe contrast even when slight misalignment or vibration is present. Higher-grade encoders use matched LED sources and filtering optics to reduce signal distortion, while the grating pitch sets the fundamental resolution limit. Mechanically, mounting rigidity plays a decisive role—any flexure or drift between the scale and readhead becomes a direct position error, which is why high-stiffness brackets and low-creep adhesives are often preferred over generic fastening methods.

Thermal stability is another differentiator. Scales produced from low-expansion materials such as Zerodur or Invar, combined with thermally matched substrates, keep the graduation period nearly constant across temperature changes. Kinematic mounts, preloaded guides, and damped housings further isolate the measurement loop from high-frequency disturbances. Even small deviations in readhead alignment—yaw, pitch, roll, and ride height—can reduce signal amplitude and introduce interpolation errors that no amount of electronic compensation can fully remove. Thus, the most accurate systems are those whose optical design and mechanical constraints are developed together, not bolted on as an afterthought.

Choosing the Right Magnification and Stage Size for Your Workpieces

Start with the smallest feature you actually need to resolve, then work backwards. If you only need to verify a 0.5 mm solder joint, a 20x lens may sound impressive but it will narrow your field of view so much that you spend more time repositioning the part than inspecting it. Lower magnifications—between 5x and 15x—often strike a better balance for assembly checks, while higher magnifications are reserved for surface finish or micro-cracks.

Stage size should be driven by your largest workpiece plus the travel needed to reach every inspection point without remounting. A 200 mm x 150 mm stage handles most small brackets and connectors, but if you work with PCBs longer than 300 mm, look for stages with at least 400 mm of X travel. Also check the throat depth or clearance if the part has tall components; a stage that moves smoothly under load matters more than raw dimensions.

One overlooked detail is how magnification changes your perception of stage accuracy. At 50x, even a tiny bit of backlash or uneven stage movement shows up as image jump, so pairing a fine-pitch leadscrew stage with moderate magnification often gives better results than buying the highest-power objective and fighting a coarse stage.

Digital Readouts, Software, and Data Output: Beyond Basic Imaging

Modern imaging systems have moved far beyond producing a simple visual snapshot. The digital readouts layer quantifies what the eye alone might miss, turning subtle differences in signal strength, attenuation, or timing into precise numerical values. These readouts can range from basic pixel intensity statistics to more derived metrics like contrast-to-noise ratios, signal linearity checks, or region-of-interest averages that update in real time. Having this data immediately available changes how operators interact with the system—they no longer rely purely on subjective brightness and contrast adjustments, but can reference hard numbers to confirm that a feature is genuinely present rather than a display artifact.

The software side is where raw detector output becomes usable information. Instead of monolithic imaging suites, many systems now expose their data through lightweight, scriptable interfaces or modular logging tools. This allows users to capture exactly the frames, metadata, and calculated parameters they need without wading through proprietary file formats. A well-designed acquisition script can pull a live histogram, apply a flat-field correction, and export a CSV of selected pixel values in the same run. The key advantage is repeatability: once a measurement sequence is defined, it runs the same way on every sample, removing one more source of operator variability.

Data output formats have likewise shifted toward openness and traceability. Raw files are often accompanied by sidecar metadata that records exposure time, gain, temperature, sensor readout mode, and any applied preprocessing steps. This matters because downstream analysis increasingly depends on knowing exactly what happened before the image was saved. Being able to trace a final intensity value back to its original detector counts—and knowing which corrections were applied along the way—turns a single picture into a defensible measurement. For anyone comparing results across instruments or re-examining archived data, that chain of custody is often more valuable than the image itself.

Evaluating Build Quality and Calibration Standards from Chinese Manufacturers

Assessing build quality from Chinese manufacturers starts with physical inspection rather than spec sheets. Request a production sample and check things like weld consistency, anodizing uniformity, and whether threaded fasteners engage cleanly without cross-threading. Pay attention to small details—edge deburring, cable routing, and labeling—since these often signal the level of process control behind the product.

Calibration standards vary widely even among factories that claim ISO compliance. Ask for the actual calibration certificates for the instruments used in final testing, not just a generic quality manual. Some workshops use master gauges that haven't been recertified in years, which can quietly undermine accuracy. If possible, have the unit independently verified against a known reference before accepting a batch.

Another useful step is to look at how the manufacturer handles out-of-tolerance results. Do they document rework and retesting, or do they simply adjust readings to pass? A factory that logs nonconformances and shows you the corrective action trail is far more credible than one that only presents perfect final reports. This transparency is a better indicator of long-term reliability than any marketing claim.

Practical Selection Checklist: Balancing Cost, Support, and Long-Term Reliability

Start by looking beyond the initial price tag. A low upfront cost can hide expenses like mandatory maintenance contracts, staff retraining, or fees for data migration that only surface after signing. Ask vendors for a three-year total cost estimate, including upgrade paths and any per-user licensing changes.

Support quality is easy to overlook until something breaks. Check whether the vendor offers 24/7 coverage or only business hours, whether you can talk to a real engineer or just a scripted tier-one rep, and how quickly critical issues get patched. A cheap tool with slow support can quietly drain your team's time and morale.

Reliability isn't just about uptime stats. Look at the vendor's update cadence, how transparent they are about known bugs, and whether they've maintained products for more than a few years without abrupt end-of-life notices. Speak with current customers about their actual experience after the honeymoon period, then weigh all three factors together before making a final call.

FAQ

Conclusion

Profile projectors remain a practical staple for non-contact dimensional checks, especially when a machined part has intricate contours that a handheld gauge can't capture. Chinese suppliers have pushed hard to pair solid optical paths with stages that move without drift, so the real decision comes down to matching the machine to what you actually measure. A telecentric lens design cuts down edge distortion, but it's only useful if your workpiece fits within the chosen stage travel—buying a 300 mm stage for small turned pins wastes money, while a 50 mm stage for large stampings forces awkward repositioning. Pay attention to the light source too: LED arrays last longer than halogen bulbs and keep the profile edge crisper over time.

Beyond the raw image, digital readouts and software matter more than many buyers expect. Features like automatic edge detection, geometric tolerancing overlays, and direct DXF export reduce operator error and speed up first-article reports. But build quality varies among Chinese manufacturers, so check for a granite base, hardened guideways, and a calibration certificate that references a traceable standard—not just a factory test sheet. A practical selection route is to ask for a demo with your own part, review the local distributor's spare parts inventory, and weigh the warranty terms against the price gap. Long-term reliability usually comes from simple, robust mechanics rather than flashy software extras.
