How does a car tire valve work?

A car tire valve, commonly known as a Schrader valve, is a critical component that controls the flow of air into and out of the tire. It allows air to be added to the tire while preventing air from escaping, ensuring that the tire maintains the proper pressure. Here's how it works:

Main Parts of a Schrader Valve:

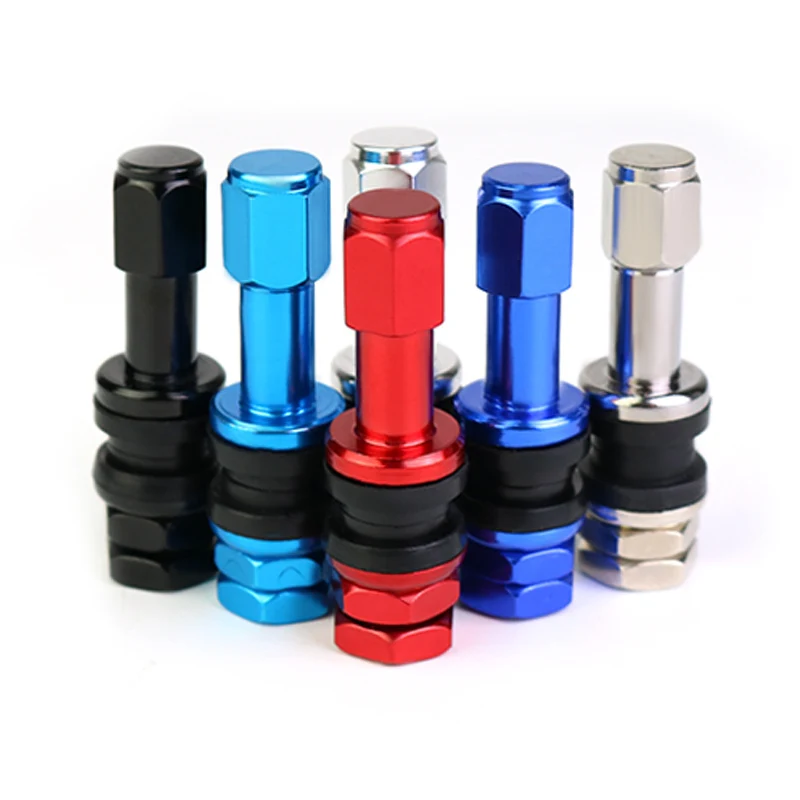

1. Valve Stem:

  - The long cylindrical tube visible on the tire's surface, made of metal or rubber. It provides the housing for the internal parts of the valve and connects the valve core to the tire.

2. Valve Core:

  - A small spring-loaded valve inside the valve stem that controls the opening and closing of the air passage. The core has a central pin that can be depressed to release or allow air into the tire.

3. Spring:

  - A small spring within the valve core that pushes the valve closed when not in use, ensuring that air doesn’t leak out.

4. Valve Cap:

  - A small screw-on cap that covers the valve stem. It helps protect the valve from dirt, dust, and moisture, though it doesn’t hold air pressure.

How a Car Tire Valve Works:

1. Filling the Tire:

  - When you attach an air pump to the valve, the pressure from the pump pushes down on the pin in the valve core, overcoming the spring's force. This action opens the valve and allows air to flow into the tire.

  - As the air flows in, the pressure inside the tire increases.

2. Sealing the Valve:

  - Once you stop pressing the valve pin (by removing the pump or letting go of the air chuck), the spring inside the valve core forces the pin back up, closing the valve. This prevents air from escaping the tire.

  - The valve automatically seals itself, ensuring the tire maintains air pressure.

3. Releasing Air:

  - To release air from the tire, you press down on the central pin (usually with a tool or a small object). This opens the valve, and air flows out of the tire until the pin is released, allowing the spring to reseal the valve.

The Role of the Valve Cap:

- Although the valve core does the actual sealing of air, the valve cap is essential for protection. It prevents dirt, dust, and moisture from entering the valve, which could otherwise cause blockages or corrosion, potentially leading to leaks.

Key Features of a Tire Valve:

- One-Way Design: The Schrader valve is a one-way valve, allowing air to enter the tire but preventing it from escaping unless the valve pin is depressed.

- Durability: It is designed to withstand pressure and temperature fluctuations, making it reliable for the demands of daily driving.

In summary, a car tire valve works by using a spring-loaded valve core inside a valve stem. When the central pin is depressed (during inflation or deflation), the valve opens, allowing air to flow. Once the pin is released, the valve closes automatically, keeping the tire properly inflated.
