What are the different types of combiner boxes?

2024-03-07

Combiner boxes are essential components in photovoltaic (PV) solar systems, used to consolidate the electrical connections from multiple solar panels into a single output. The design and type of combiner box can vary based on factors such as system size, voltage levels, and specific requirements. Here are some common types of combiner boxes used in solar installations:

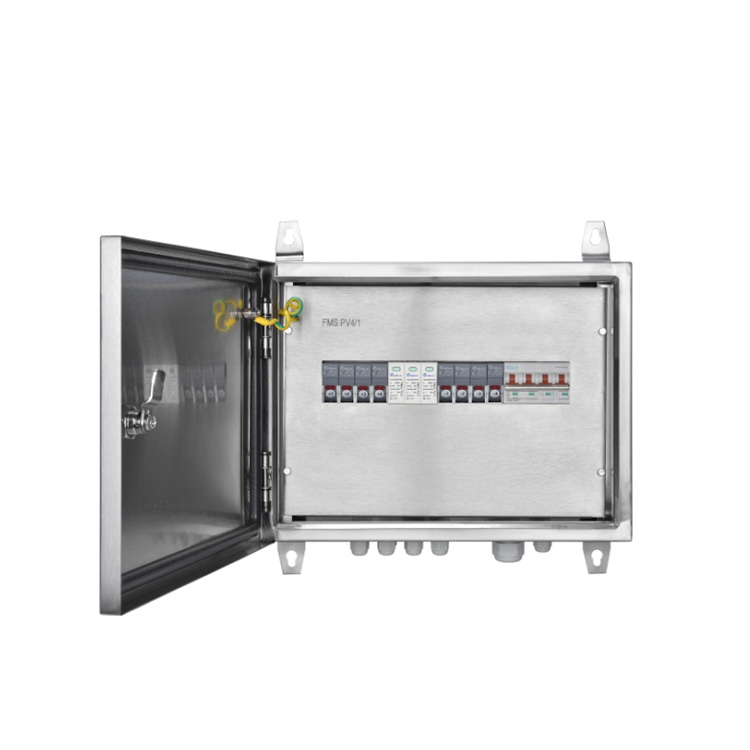

1. String Combiner Box: A string combiner box combines the outputs of multiple strings of solar panels into a single output. Each string typically consists of several solar panels connected in series. String combiner boxes may include fuses or circuit breakers for each string to provide overcurrent protection and isolation.


2. Array Combiner Box: An array combiner box combines the outputs of multiple strings or arrays of solar panels into a single output. It may include multiple input terminals for connecting strings or arrays of panels and a single output terminal for connection to the inverter or charge controller.


3. DC Combiner Box: DC combiner boxes are used to combine the DC outputs of multiple strings or arrays of solar panels before they are connected to the inverter. They typically include overcurrent protection devices such as fuses or circuit breakers to protect the system from faults and overloads.


4. AC Combiner Box: AC combiner boxes are used in grid-tied solar systems to combine the outputs of multiple inverters into a single AC output. They may include circuit breakers or disconnect switches for each inverter to provide overcurrent protection and isolation.


5. Bi-Directional Combiner Box: Bi-directional combiner boxes are used in hybrid solar systems that incorporate both solar panels and energy storage systems such as batteries. They combine the outputs of solar panels and batteries into a single output for connection to the inverter or load.


6. Customized Combiner Boxes: In some cases, combiner boxes may be customized to meet specific project requirements. This could include integrating additional features such as surge protection devices, monitoring equipment, remote monitoring capabilities, or special enclosure designs for specific environmental conditions.


7. Off-grid Combiner Box: Off-grid combiner boxes are used in standalone solar systems that are not connected to the grid. They combine the outputs of multiple strings or arrays of solar panels before they are connected to the charge controller or battery bank.


These are some common types of combiner boxes used in solar installations, each designed to meet specific needs and requirements of different solar system configurations and applications. The choice of combiner box depends on factors such as system size, voltage levels, safety requirements, and project budget.
